BUTTER WORKERS, BUTTER PRINTERS, PRINT, BUTTER CARRIERS
THE LARGEST MANUFACTURY OF DAIRY AND CREAMERY APPARATUS IN THE WORLD.
Nesbitt’s Patent Self-Gauging Butter Presses
The Davis Swing Churn
Size Capacity
No. 1 4 gallon
No. 2 5 gallon
No. 3 8 gallon
No. 4 10 gallon
No. 5 13 gallon
No. 6 17 gallon
No. 7 30 gallon
No. 8 40 gallon
No. 9 50 gallon

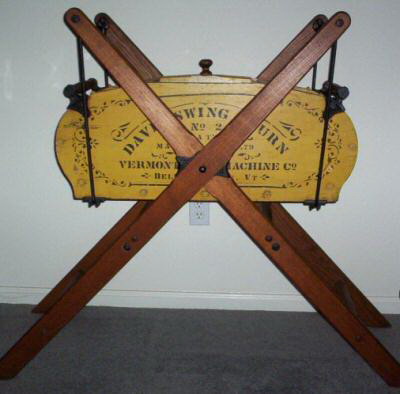

This is a Davis Swing Churn patented on May 1, 1877 and September 9,
1879. This is a size 2 or 10 gallon capacity designed to churn 5
gallons of cream. This churn has the plain frame. There was
a folding frame available for a dollar more. This butter churn
was
listed at $8.00 in an 1889 catalog from the company. The churn
was
made by Vermont Farm Machine Co. of Bellows Falls, Vermont. There
are no paddles inside the churn. As the churn box rocked on the
cradle
the cream rolled over on itself to make butter. The company said
this gentle action did not injure the butter. These butter churns
were available in twelve sizes. The largest was 300 gallons and
was
made to be suspended from the ceiling beams of the creamery. For
an additional 16 dollars this company sold a treadmill attachment that
allowed a dog, goat or sheep to supply the power to swing the
churn.
Thanks Doug
